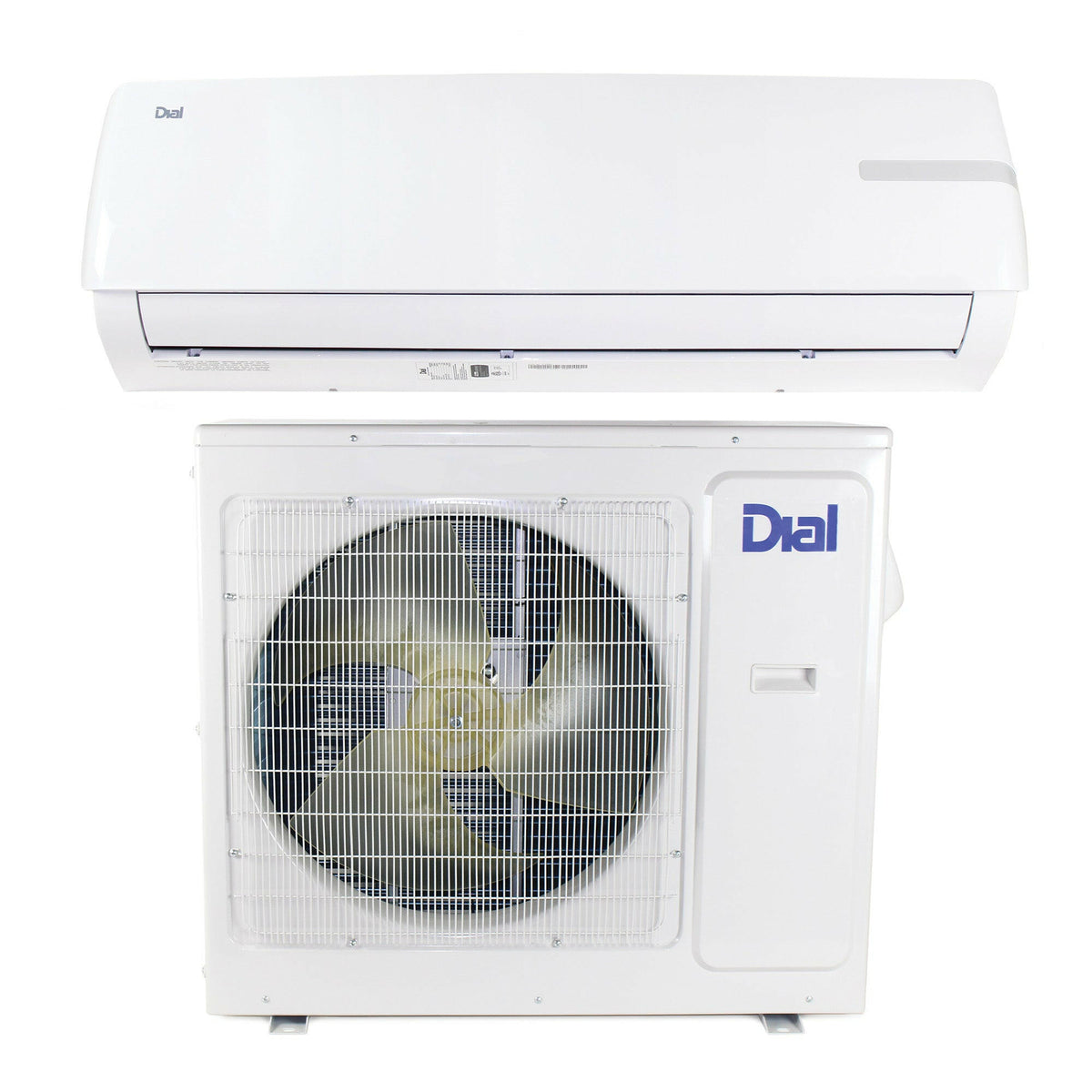

Dial® 17 SEER (18,000 BTU) 230V Mini-Split (1.5 Ton)

Dial Manufacturing  |  SKU: Part # 80350 | Model # 18000-17S-230-0
$1,105.00 USD

Description

Feature Highlights
Eco-Friendly Energy Savings

The unit uses R-410A refrigerant, which is more environmentally friendly and allows for higher SEER ratings that reduce energy consumption.

Low Temperature Cooling

Cooling mode can be used at a lowest of 5°F (-15°C) outdoor temperatures.

Smart Temperature Mode

Operation mode and temperature are automatically set based on the current room temperature.

Fast Cooling Mode

Fast cooling operates at a high fan speed and changes the set temperature automatically to 61°F (16°C) to cool the area quickly.

Auto Vertical Air Flow

Using the remote controller, the vertical air flow can be set to a desired static position or to swing up and down automatically.

Independent Dehumidification

In addition to dehumidifying during cooling mode, the Dry mode reduces moisture in the air without drastically changing the area temperature.

24 Hour Timer

Program the unit for one on/off cycle at a desired time within a 24 hour time period.

Quiet Operation

Quiet operation of the outdoor unit (DC inverter) during both cooling and heating modes.

Easy Installation

Instead of a large exhaust from a window or wall, it requires only a 3 inch hole to connect the indoor unit to the outdoor unit.

Additional Features
  • Intelligent Pre-Heating / Defrost
  • Anti-Frozen Pipe Heating (8°C / 46°F)
  • 2-Way Drainage
  • Washable Filter
  • Outdoor Unit Chassis Heating
  • Fireproof Electrical Box
  • Sleep Mode
  • Follow Me / I Feel (Remote Thermostat)
  • Celsius and Fahrenheit Display
  • Display On/Off
  • Auto-Restart
  • Louver Position Memory
System Air Conditioning Type Ductless Mini-Split Heat Pump
Application Room Size (sqft) 700 to 1000
Electrical Voltage, Frequency, Phase 208-230V~,60Hz,1P
Compressor Motor Technology Inverter
Refrigerant (pre-charge oz) R410A 49.38
Max Pre-Charged Line-Set (ft) 24.6
Max Line-Set Length(1) (ft) 65.4
Max Height (ft) Indoor & Outdoor 32
Liquid Pipe (Diameter-inch) 1/4
Suction Line (Diameter-inch) 1/2
Performance Cooling Capacity (BTU/H) 18,000
Heating Capacity (BTU/H) 20,000
SEER (Cooling) BTU/W.h 17.6
HSPF (Heating) BTU/W.h 10.1
EER (Cooling) BTU/W.h 10.90
COP (Heating) W/W 3.20
Air Circulation m3/Hr (CFM) 1000 (588)
Moisture Removal per Hr (Dehumidifier) 2.0L / 0.53gal
Indoor Unit Dimensions (LxHxD) (inches) 36 x 12 3/8 x 9 5/16
Weight (lbs) 27.56
Airflow (S/H/M/L) CFM 588/530/440/341
Air flow (Direction) Vertical / 4-way Vertical
Sound Level (H/M/L) dB (A) 45/43/38
Outdoor Unit Dimensions (LxHxD) (inches) 31 7/8 x 23 x 11
Weight (lbs) 85.98
Sound Level dB (A) 56
Electrical Current Input Cooling (A) 7.6
Current Input Heating (A) 9.0
Max Current Cooling (A) 12.0
Current Range Heating (A) 12.0
Power Input-Cooling (W) 1652
Power Input-Heating (W) 1832
Working Temperature Range Cooling 0°C-46°C (32°F-115°F)
Heating -20°C-24°C (-4°F-75°F)
Approval & Certifcation Industry Certification ETL / AHRI
Energy Saving Energy Star V5.0 Not Star Rated
Warranty Compressor/Parts (Years) 7 / 2

Specifications

  • Weight
    165 lb
  • Color/Finish
    White
  • Returnable
    Non-Returnable
  • Saber Sales Exclusive
    No
  • CA Residents Prop 65 Warning(s)
    Yes
