ReliaBilt

RELIABILT Stainless Steel Die-cast Cabinet/Drawer Lock

SKU: Item # 252837 Barcode: 049793799456
(0)
Out of stock
€9,95 inc. VAT

Ships in 1 business day

Get quick delivery on all in-stock orders - Shipments processed within 1 business day.

Got questions?

Feel free to get in touch

Ask an expert

Video chat Chat Email +1 (915)-598-8598
This drawer and cabinet lock is constructed of diecast and steel components and it comes in a stainless steel finish. Features a 3/4 in. outside cylinder diameter with a 1-1/8 in. length that will accommodate up to 13/16 in. thick panels. This drawer and cabinet lock can be mounted to metal or wood; door and/or drawer panels, and it comes complete with 3 cams, a trim collar, 2 reversible rotation washers, 2 keys and fasteners. This model number is keyed different and it uses Yale Y-11 keyway. Others have used these to replace damaged locks in work truck tool boxes and gumball machines.

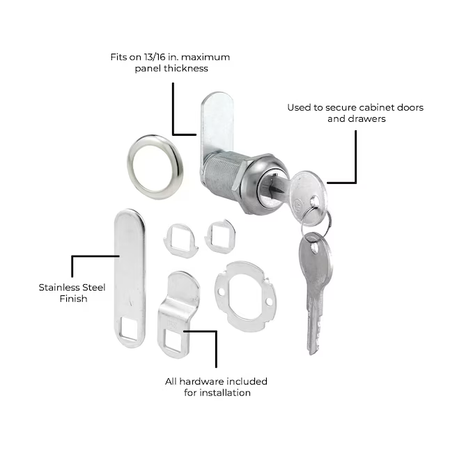

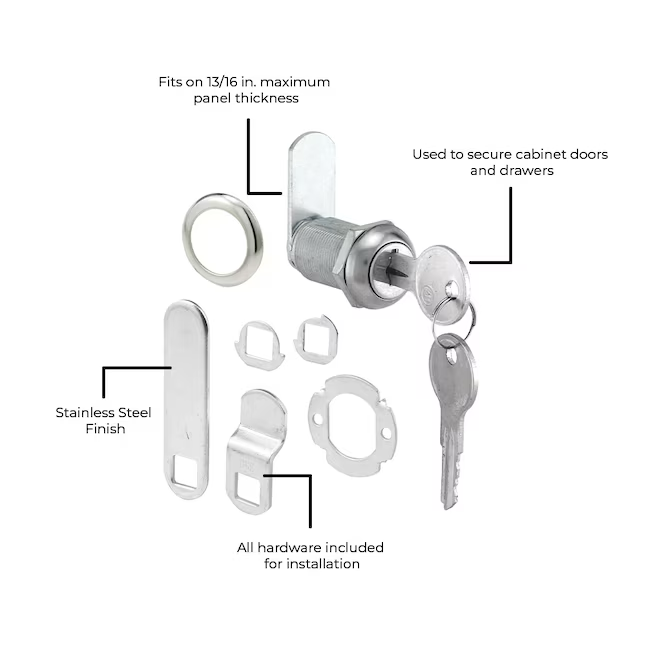

  • Used to secure cabinet doors and drawers

  • Has a 3/4 in. outside diameter x 1-1/8 in. long cylinder. Fits on 13/16 in. maximum panel thickness

  • Stainless steel finish

  • Durable diecast and steel construction with a stainless steel finish

  • All hardware included for installation

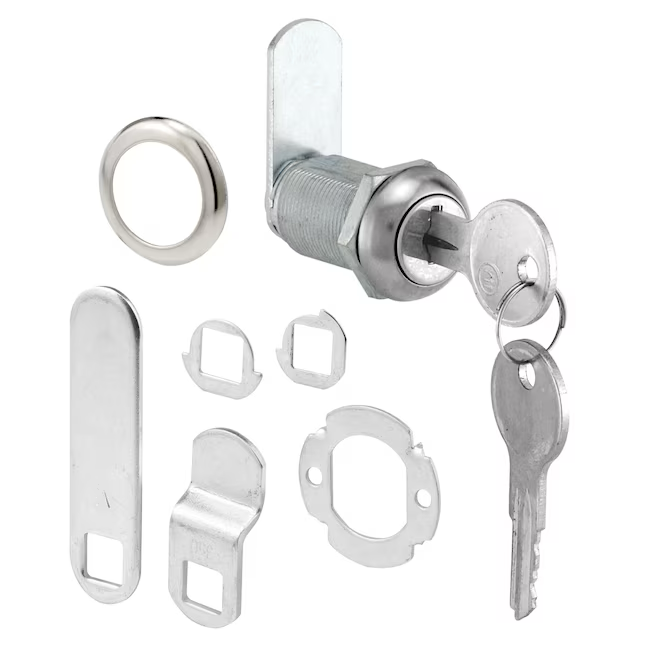

  • Contains 1 lock, 3 cams, 1 trim collar, 1 spur washer, 2 rotation washers, 1 lock nut and 2 keys

  • Body of this lock is 3/4 in. diameter with a face of 7/8 in. diameter

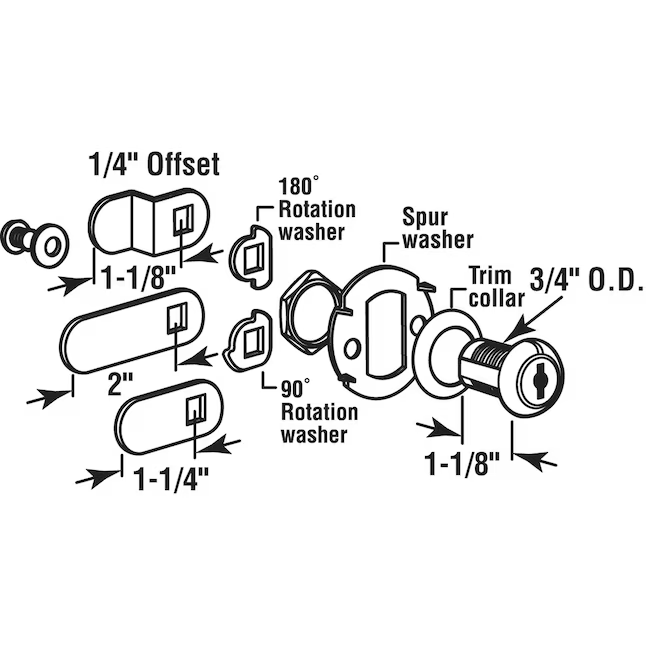

  • For further dimensional information, please see the line drawing

Data Sheet:

User Manual:

Safety Instructions:

Color: Stainless steel

Material: Die-cast

Style: Cabinet/Drawer lock

Grade:

Amps:

Voltage:

Wattage:

Type:

Power Source:

Max Coverage Area (Sq. Ft):

Scent:

Application:

Application Method:

Brand/Model Compatibility:

Use Location:

All orders take about 2-24 business hours to process and ship out. Normally, we will ship out same day orders by 5PM PST everyday. All packages will ship Monday-Friday. Weekend orders will be processed and sent out the following Monday.

Saber Sales Exclusive: No

Weight: 1 lb

Returnable: 30-Day

Warranty: 1-year limited

CA Residents Prop Warning: Yes
