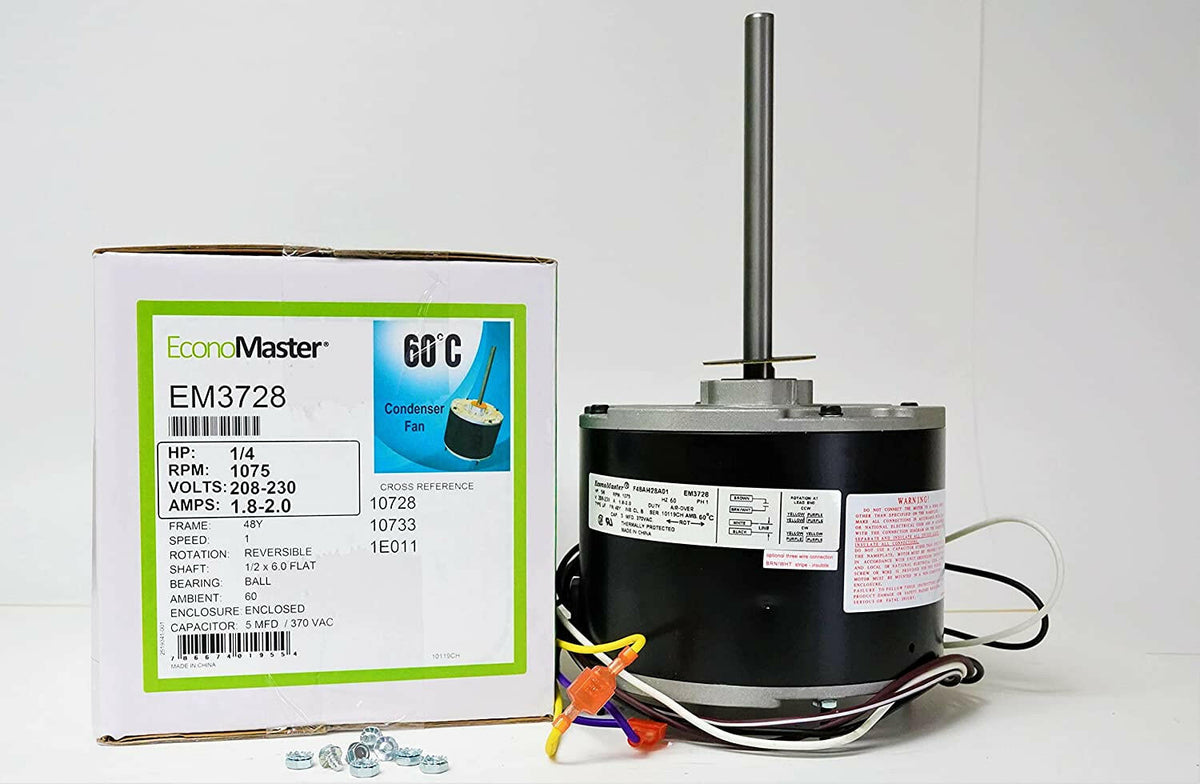

EconoMaster EM3728 1/4 HP 60°C Condenser Fan Motor 1075 RPM 208-230 Volts 48 Frame Replaces Packard 43732
- EconoMaster - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 36" Leads
- Extended Studs Lead End, Mounting Holes in Shell, Belly Band
General Specifications
| UPC: | 786674019554 | Weight: | 11.00 LB |
| Packaged Length: | 13.78 IN | Packaged Width: | 6.41 IN |
| Packaged Height: | 6.81 IN |
Nameplate Specifications
| Output HP: | 1/4 Hp | Output KW: | 0.19 kW |
| Frequency: | 60 Hz | Voltage: | 208-230 V |
| Current: | 1.8-2.0 A | Speed: | 1075 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 48Y | Enclosure: | Totally Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 60 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Induction Run |
| Poles: | 6 | Rotation: | Reversible |
| Mounting: | Extended Studs | Motor Orientation: | Any |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Steel | Shaft Type: | Flat |
| Overall Length: | 10.67 in | Frame Length: | 3.50 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 6.0 in |
Direct replacement for
| Fasco | D749 |
|---|---|
| Fasco | D7749 |
| GE | 3732 |
| Wagner | WG840728 |
| Goodman | B13400-247 |
| Mars | 03278 |
| Mars | 03732 |
| Mars | 10728 |
| Mars | 10733 |
| Century | FSE1026SV1 |
| Smart Electric | 238228 |
| genteq | 3728 |
| genteq | 3732 |
| US Motors | 1860 |
| US Motors | 1876 |
| Source 1 | FHM3728 |
| Source 1 | S1-FHM3728 |
| First Choice | Y4632 |
