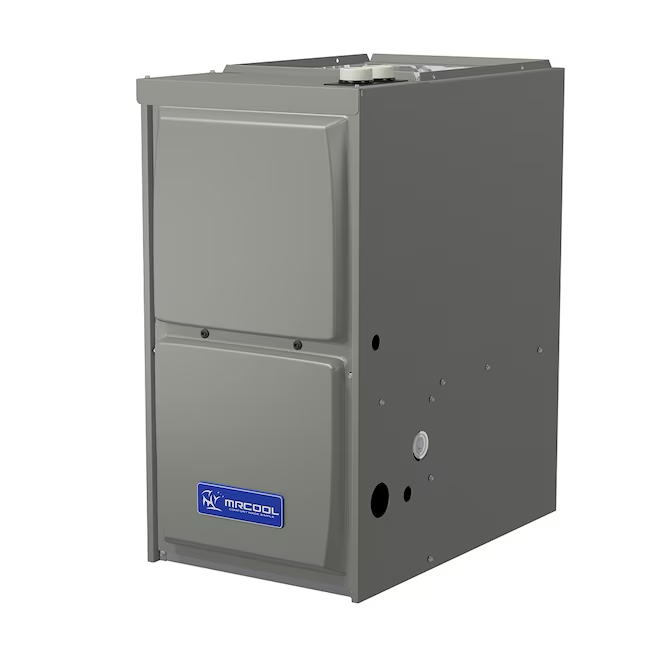

MRCOOL 96% AFUE 90000 BTU Downflow Gas Furnace

MRCOOL  |  SKU: Model # MGD96SE090C4XA
$2,190.00 USD

Item is Special-Ordered, Please allow for additional delivery time.

Learn More About Special Orders

These products are ordered directly from the manufacturer and may experience a delayed shipping time. However, rest assured that once the products arrive at our warehouse, they will be conveniently shipped out to fulfill your order.

If You Are Placing An Order That Contains A Special Ordered Item(s), Please Be Aware Your Order May Be Delayed Until All Items Are Ready To Be Shipped/Delivered.

We Recommend Placing Two Separate Orders To Avoid Delays.

Usually ships within 1-7 business days

Non-returnable

Cannot be returned or exchanged

Description

The MRCOOL Signature Series Single-Stage 96% AFUE 90k BTU downflow furnace is a quiet running unit that provides excellent heating performance while remaining energy efficient. With low NOx, a 96% AFUE, and a multi-speed high efficiency blower motor, this furnace will ensure savings on your utility costs. The unit is constructed with an aluminized steel primary heat exchanger that is crimped and non-welded, resulting in a durable build and finish. Ignition is smooth thanks to the aluminized steel inshot burners and long-lasting silicon nitride ignitor. The single stage gas valve ensures heating is delivered quickly to your home. In order to ease the installation process, the unit offers left or right utility connections and is design certified for direct and non-direct vent applications. It can be easily vented with PVC pipe and features a compact 33-inch design with standardized widths for an easy coil fit. An optional LP kit is also available if needed. Your HVAC technician will appreciate the easily removable slide out blower design that makes maintenance even easier. This downflow furnace is backed by a lifetime warranty on the heat exchanger and a 10-year parts warranty.
  • Multi-speed high efficiency (constant torque) blower motor

  • Self-diagnostics saves last 10 fault codes regardless of power interruption

  • Standardized widths for easy coil fit

  • Downflow configuration

  • Single stage gas valve

  • Optional LP kit or high altitude LP conversion kit purchased separately

  • Easily removable slide out blower design

  • 10-Year registered parts warranty

  • Aluminized steel in shot burners for smooth ignition

Specifications

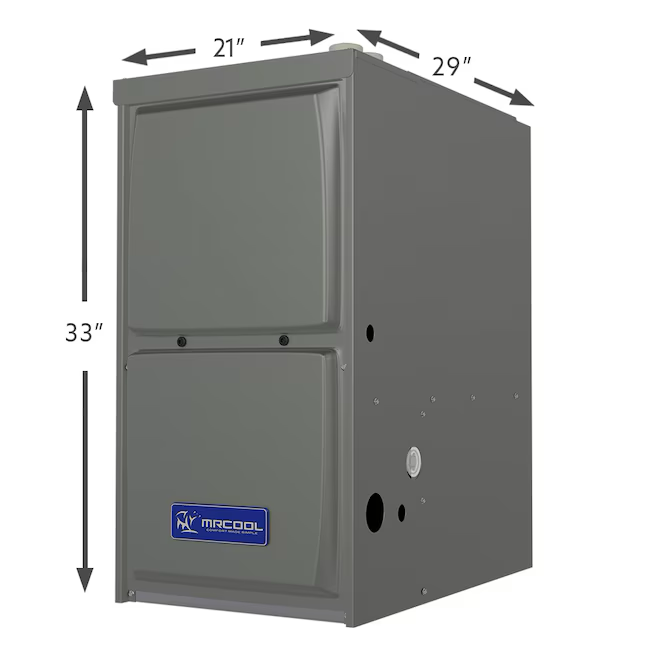

  • Dimensions
    Depth (Inches)
    29
    Width (Inches)
    21
    Height (Inches)
    33
  • Specifications
    Air Delivery Configuration
    Downflow
    Insulation Material
    Foil Faced Fiberglass
    Amperage
    8.4
    Maximum BTU Input
    88000
    CFM@.5 ESP (CFM)
    1600
    Maximum BTU Output
    86000
    Efficiency Percentage (Percentage)
    96
    Number of Stages
    1
    Fuel Type
    Natural gas
    Thermostatic Control
    Yes
    Furnace Venting Type
    Direct vent
    Variable Speed
    No
    Housing Material
    Steel
    Voltage (Volts)
    120
    Ignition
    Hot surface igniter
  • Weight
    114 lb
  • Color/Finish
    Gray
  • Returnable
    Non-Returnable
  • Warranty
    10-Year
  • Saber Sales Exclusive
    No
  • CA Residents Prop 65 Warning(s)
    Yes
