SharkBite Brass 1-in Threading x 1/2-in Push-to-Connect Radiant Heating Manifold

Name: SharkBite Brass 1-in Threading x 1/2-in Push-to-Connect Radiant Heating Manifold
Brand: SharkBite
SKU: Model # 24931
Price: 348.00 USD
Availability: InStock

SharkBite | SKU: Model # 24931

$348.00 USD

Item is Special-Ordered, Please allow for additional delivery time.

Learn More About Special Orders

These products are ordered directly from the manufacturer and may experience a delayed shipping time. However, rest assured that once the products arrive at our warehouse, they will be conveniently shipped out to fulfill your order.

If You Are Placing An Order That Contains A Special Ordered Item(s), Please Be Aware Your Order May Be Delayed Until All Items Are Ready To Be Shipped/Delivered.

We Recommend Placing Two Separate Orders To Avoid Delays.

Usually ships within 3-5 business days

Non-returnable

Cannot be returned or exchanged

Description

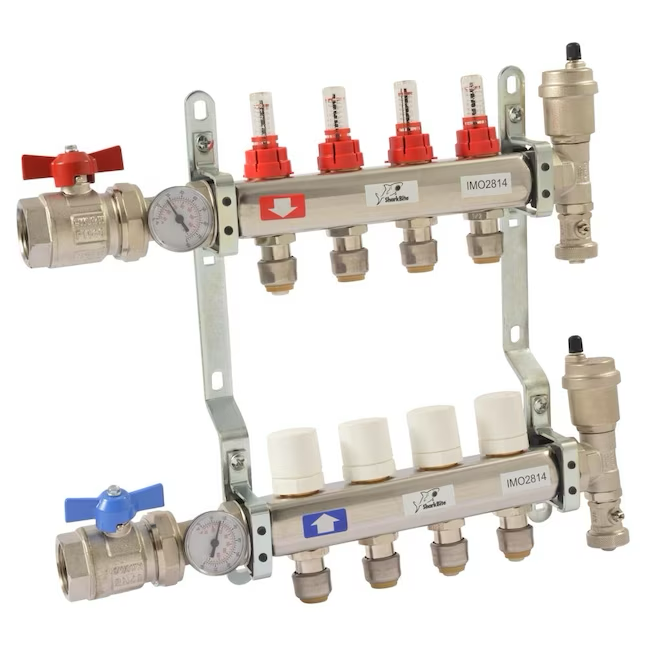

The SharkBite 4 loop radiant heating manifold is designed to optimally distribute heating fluid throughout circuits in a closed loop heating system. The manifold ensures that flow to each circuit is precisely regulated and also controls the shut-off, venting of air from the system. The fluid is heated by a water heater or boiler and distributed by the manifold throughout the different PEX tubing circuits. The manifold has a 1 In. FNPT inlet and features integrated 1/2 In. SharkBite connections on the loop ports. The SharkBite connections make connecting the loops to the manifolds significantly easier and faster than alternative connection methods.

Stainless steel construction for durability and corrosion resistance
4 loops featuring integrated SharkBite connections
Temperature gauges on supply and return manifolds
Complete metal brackets with slim depth profile
Flow balancing valves and flow meters
Integrated air vent and drain

Specifications

Dimensions

Inlet 1 Fitting Diameter
1-in
Outlet Diameter
1/2-in
Inlet 2 Fitting Diameter
1-in
Features

Inlet 1 Ball Valves
Yes
Maximum PSI (PSI)
87
Inlet 1 Fitting Orientation
Female
Maximum Temperature (Fahrenheit)
200
Inlet 1 Fitting Thread Type
NPTF
Number of Loops
4
Inlet 1 Fitting Type
Threading
Number of Outlets
0
Inlet 2 Ball Valves
Yes
Outlet Ball Valves
No
Inlet 2 Fitting Orientation
Female
Outlet Material
Brass
Inlet 2 Fitting Thread Type
NPTF
Outlet Orientation
N/A
Inlet 2 Fitting Type
Threading
Outlet Thread Type
N/A
Outlet Type
Push-to-connect
Weight

2.1 lb
Material

Brass
Grade

Series Name 4-Loop Type Radiant heating
Grade

Series Name 4-Loop Type Radiant heating
Returnable

30-Day
Warranty

2-year limited
