Siemens

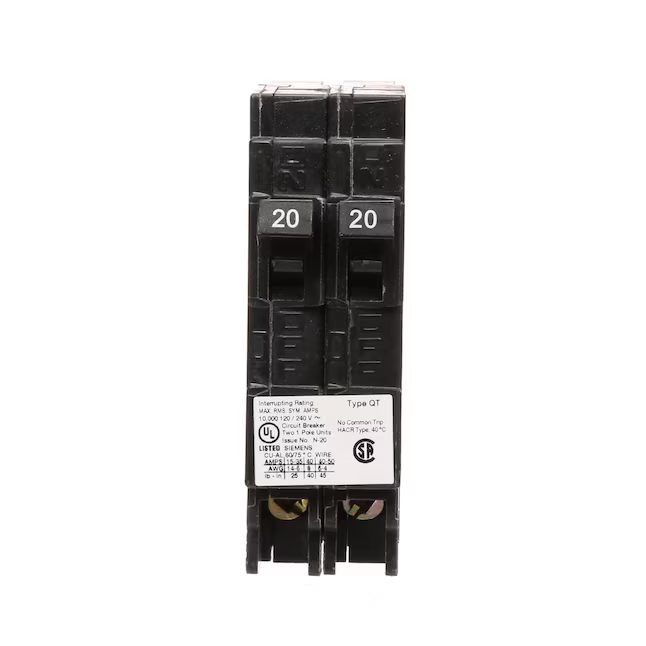

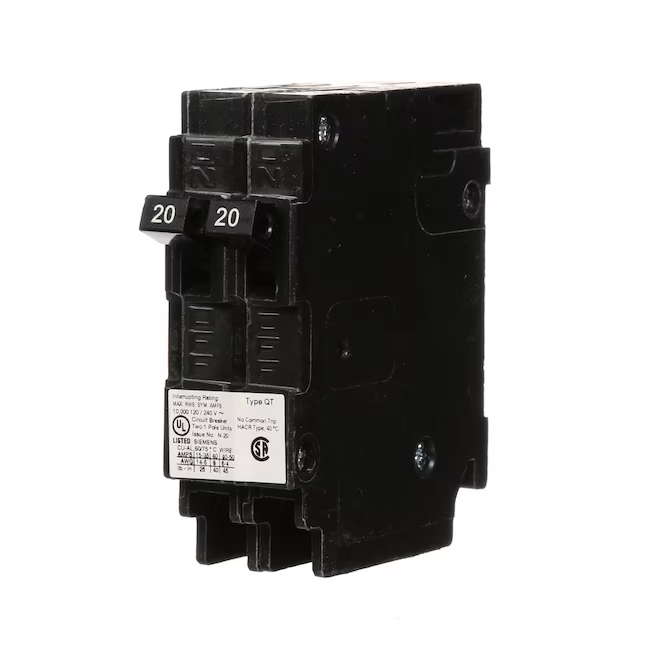

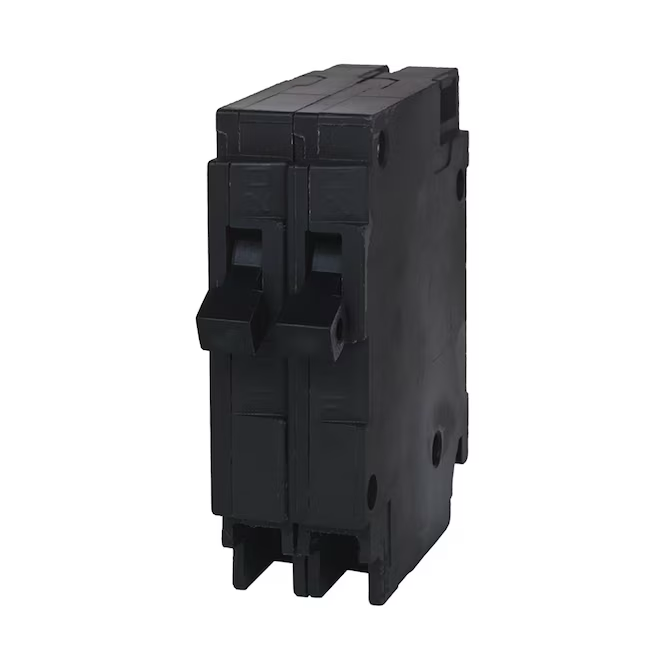

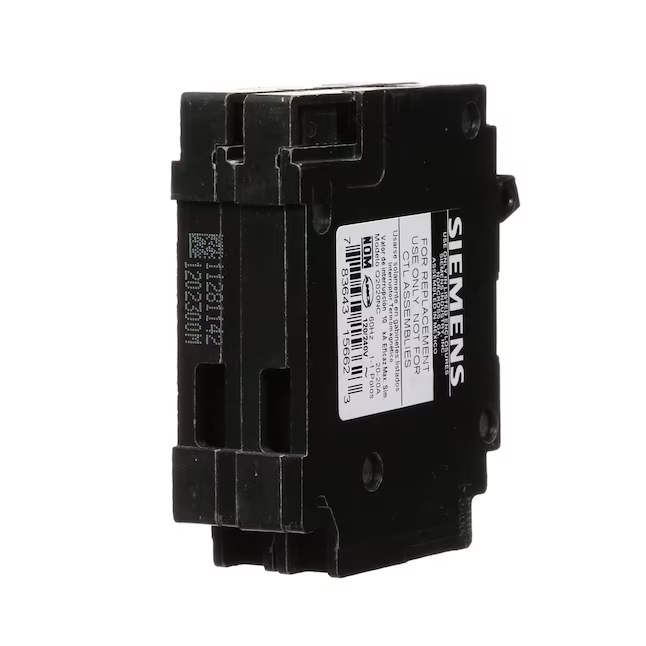

Siemens QT 20-amp/20-amp 1-Pole Tandem Circuit Breaker

Ships from manufacturer
Sku: Item # 71223689 | Model # Q2020NCU
(0)
Special Order $39.98

Ships in 1-5 business days

This product is dispatched directly by the manufacturer. Please allow for additional processing.

Got questions?

Feel free to get in touch

Ask an expert

Video chat Chat Email +1 (915)-598-8598

Earn [points_amount] when you buy this item.

Siemens space saving, plug in circuit breakers are intended for use in Siemens, Murray, ITE and Gould load centers and meter combinations that are rated to accept type QT breakers. Check wiring diagram to confirm. These duplex breakers provide 2 Single Pole breakers in the space typically required for only one standard breaker. These duplex, 1/2 in. frame breakers are ideal when new circuits are required in a panel that has no available spaces. The non-current limiting breakers are designed for use in Siemens panels manufactured prior to 1968. Siemens type QT dual circuit breakers are 1 in. wide and consist of (2) 1-pole breakers, in varying combinations of ampere ratings from 15 to 30 Amp. All type QT circuit breakers are plug-in style and load terminals are provided with the units. They are rated for 120/240-Volt AC and calibrated for 40C maximum ambient applications. The standard interrupting rating is 10k AIC.

  • Type QT Tandem 20-Amp/20-Amp Non-CTL Breaker

  • Designed to protect the home's wiring from high temperatures caused by excess current

  • For replacement use only in panels manufactured before 1968

  • Includes (2) 20-Amp single pole circuit breakers in tandem

  • Features time saving insta-wire connectors

  • For use with Siemens load centers and plug-on neutral load centers (Siemens circuit breakers are UL listed for use with Murray Meter Combo Load Centers, EQ Small Circuit Load Centers, and Murray Rock Solid Load Centers manufactured after January 2002)

  • 10,000 AIC interrupting rating

  • Requires 1 inch breaker space

  • Designed for residential/commercial applications, UL Listed, CSA, NOM Certified
  • Type Circuit Breakers
  • Vendor Siemens
  • Sku Item # 71223689 | Model # Q2020NCU
  • Barcode 783643156623
  • Dimensions Power Capacity 20-amp/20-amp Width Measurement 1-in
  • Features Number of Poles 1
  • Specifications Single phase (120/240)
  • Weight 1 lb
  • Color/Finish Black
  • Voltage 120/240
  • Type Tandem
  • AMPS 20-amp/20-amp
  • Returnable 10-Day
  • Warranty Lifetime
  • Saber Sales Exclusive No
  • CA Residents Prop 65 Warning(s) No

All special orders take about 1-7 business days to process and ship out.

Your order will be packaged with care and discretion. Items are securely wrapped to prevent shifting while in transit.

Orders Over A Certain Weight Are Subject To Pallet Deliveries Which Could Be Subject To Higher Shipping Costs, However Shipping Speeds Remain The Same. Depending On Location.

When your order is shipped, you will receive an email notification which includes a tracking number.

Saber Sales Exclusive: No
  • Weight 1 lb
  • Warranty Lifetime
  • CA Residents Prop 65 Warning(s) No
